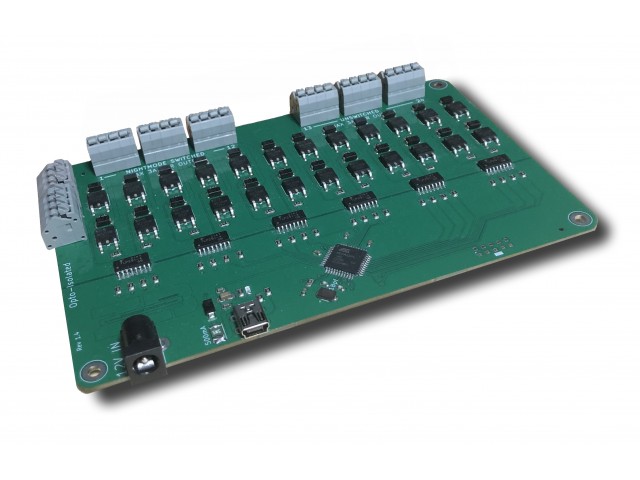

A CONTROLLER and OUTPUT BOOSTER in ONE board
24 outputs capable of up to 30V @ 3A continuous draw, 8A peak (pulsed)
Single voltage Diode rail - board designed primarily for 12V operation
Barrel jack input for 12V 10A adapter (sold separately)
4 x 12V Voltage Breakout Terminals
Integrated LedWiz Compatible DOF controller onboard means no external controller required
Night Mode Switch input switches outputs 1-12 leaving 13 - 24 running constant
Full Speed USB 2.0 connectivity with supplied cable
Tool Free terminal connectors
Be sure to select a device number that doesn't conflict with any existing LEDWiz devices in your system.
